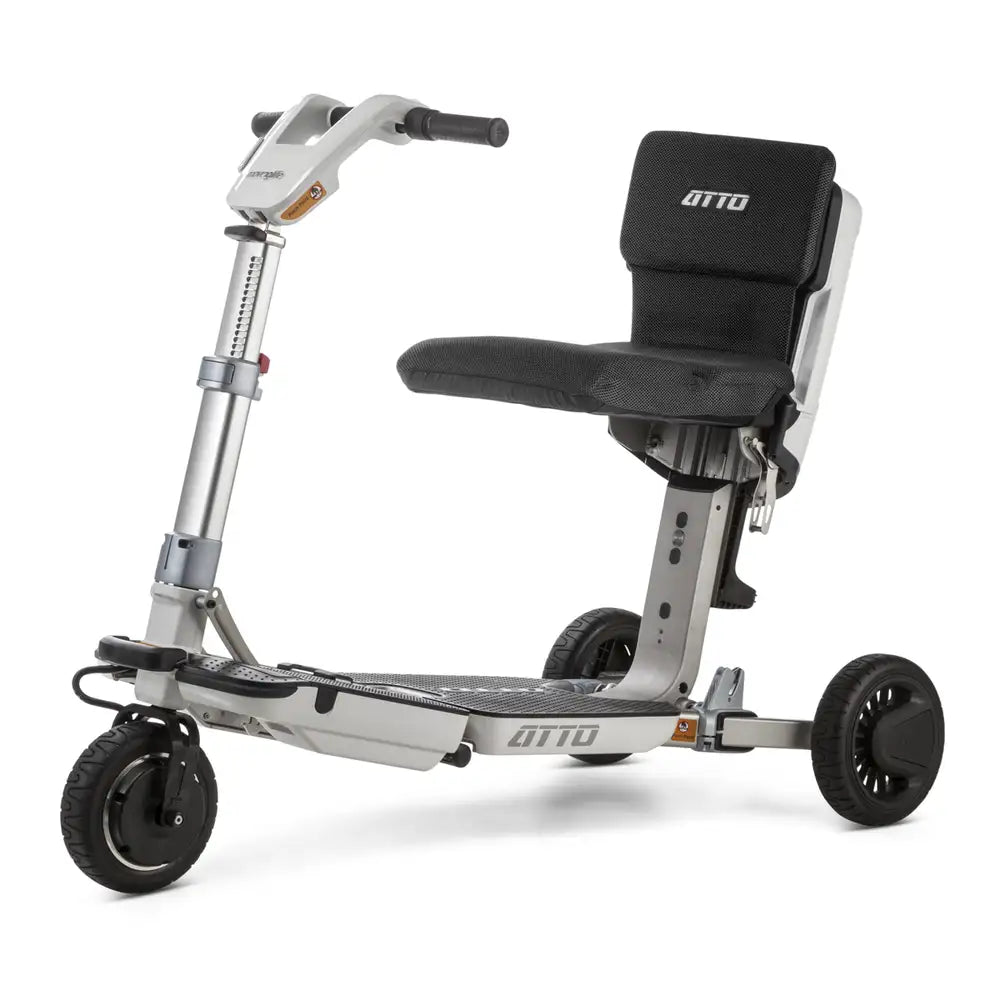

ATTO Mobility Scooter

Warranty

Two-year limited warranty – Structural frame components, including mobility scooter chassis, steering mechanism, seat mechanism, rear wheels extensions, welds on entire products.

Two-year limited warranty – All electronic parts, including controllers and battery chargers. Servicing to the controller or battery charger must be carried out by an authorized Moving Life dealer. Any attempt to open or dismantle these items renders the guarantee void on that item.

Two-year limited warranty – Drivetrain, including motor, front wheel fork and brake.

One-year limited warranty – Batteries are covered by a one-year warranty from the original manufacturer. Gradual deterioration in battery performance due to not following usage instructions specified in owner’s manual or worn out through heavy use is not covered.

Features

• ATTO provides an unbeatable young and high-tech design.
• Fully customized brushless, permanent magnet, DC motor
• 48 Volt lithium-ion battery – 12 mile (20-km) range on a 4- to 5-hour charge

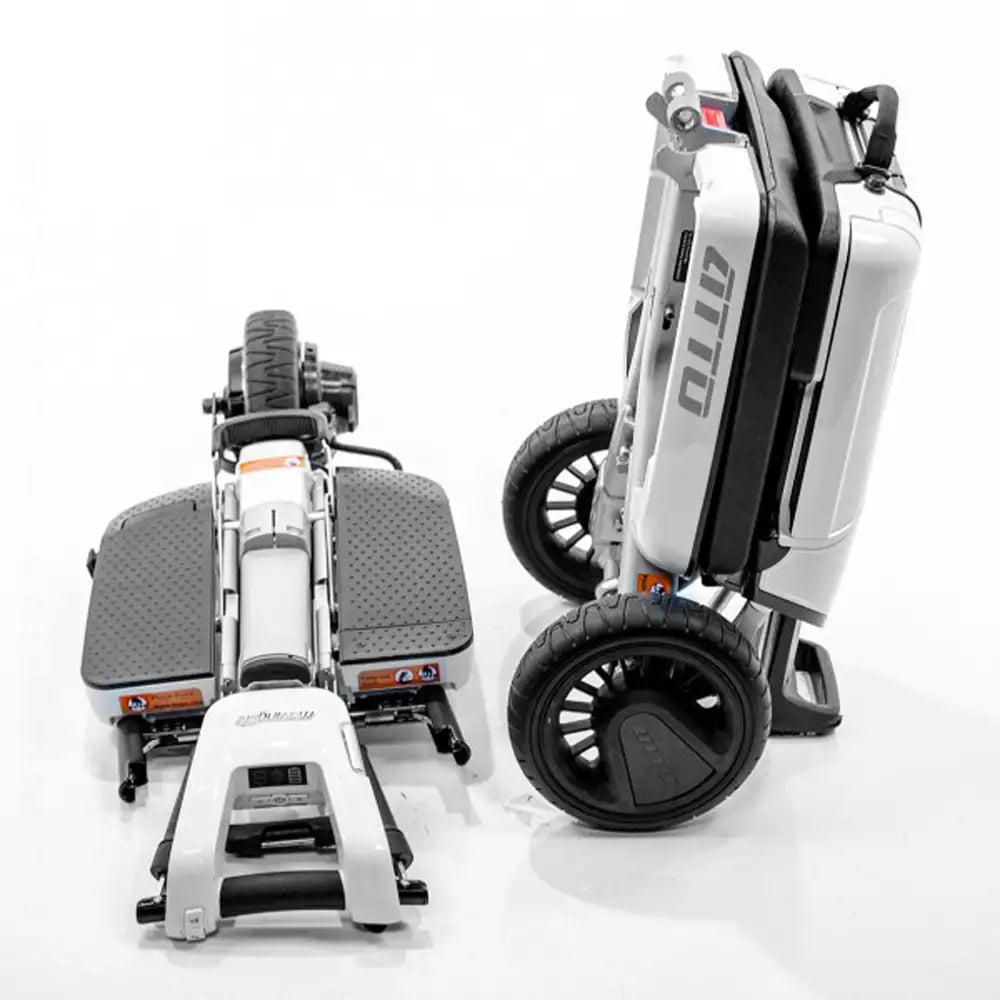

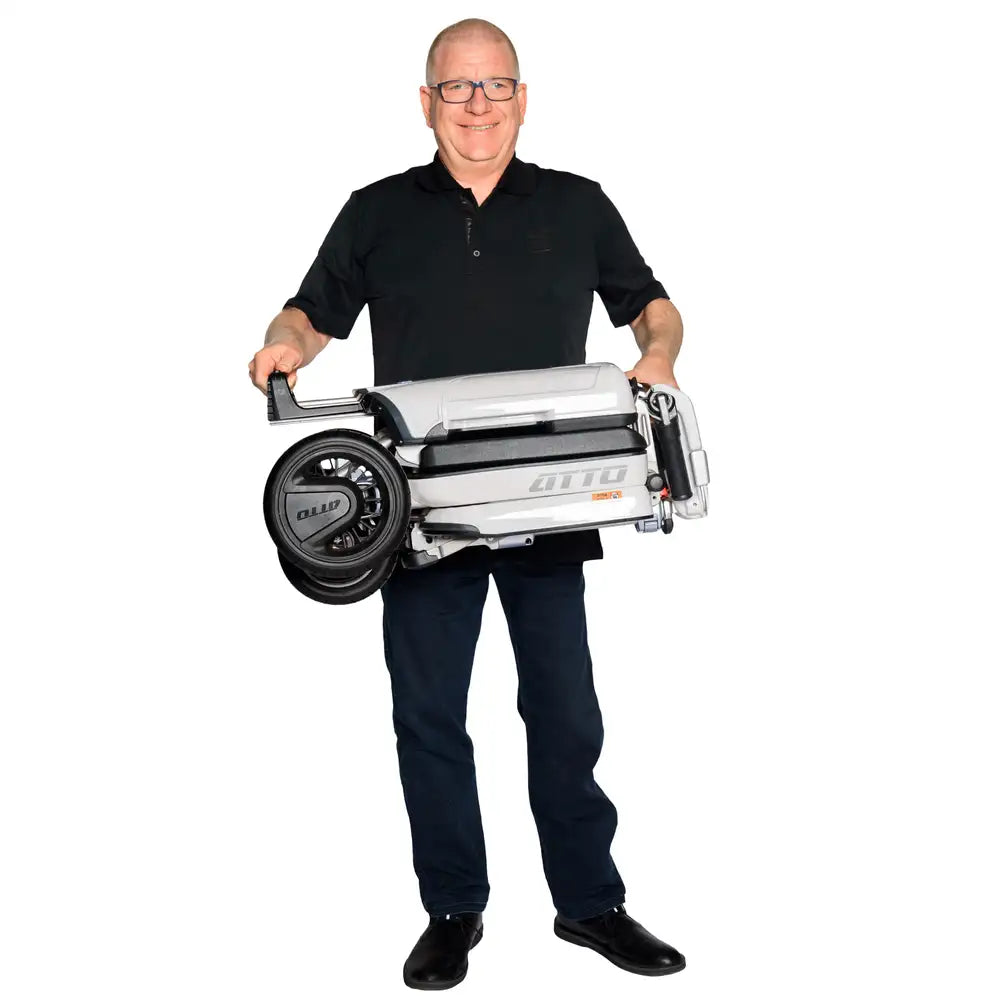

• ATTO can be split into 2 lightweight parts which allows you to lift it with an ease.
• 3 fixed heights ranging 22 to 24 inches (56 to 61 cm) from the ground. with special 4th seat height for kids

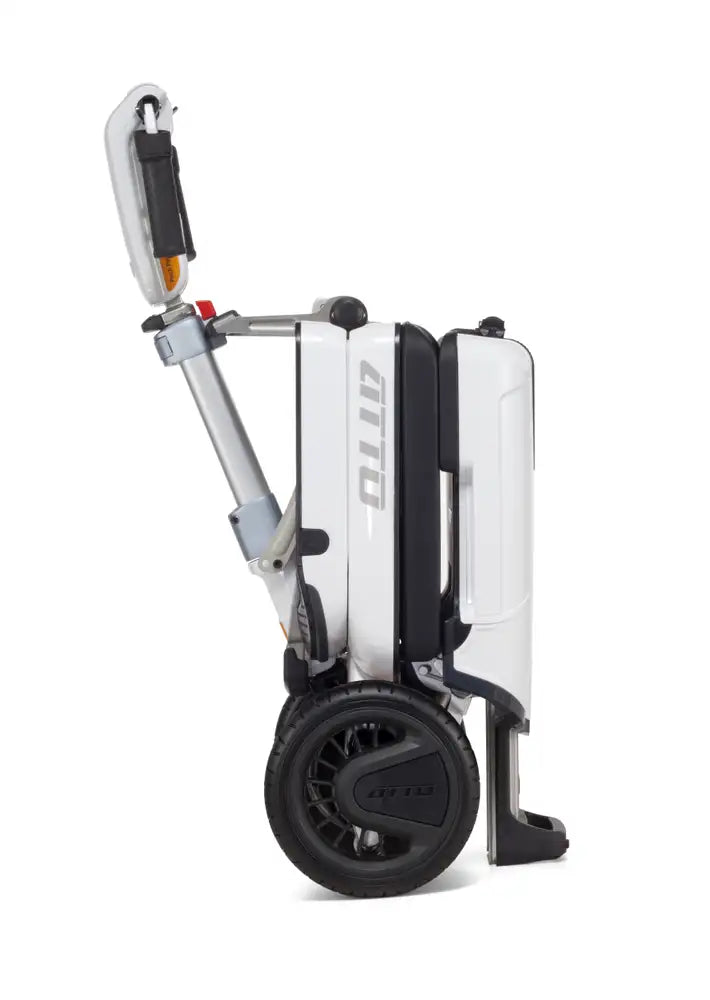

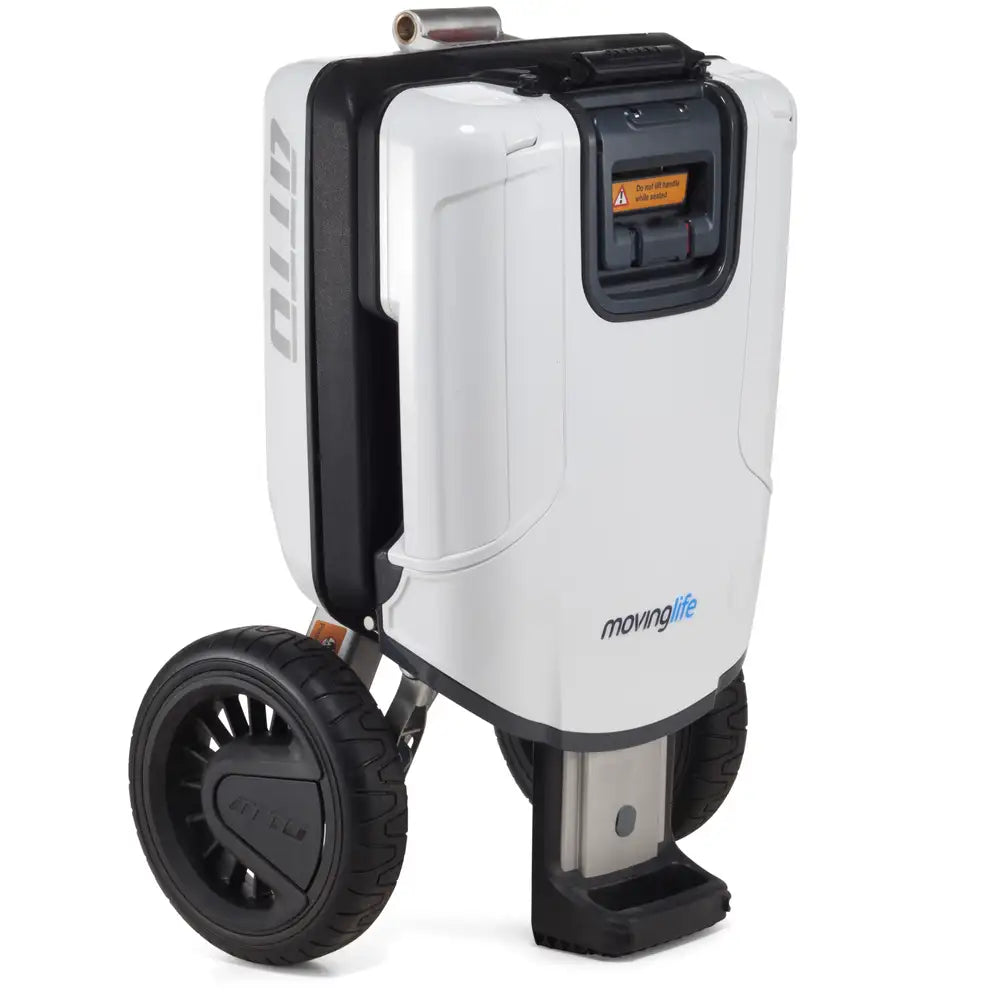

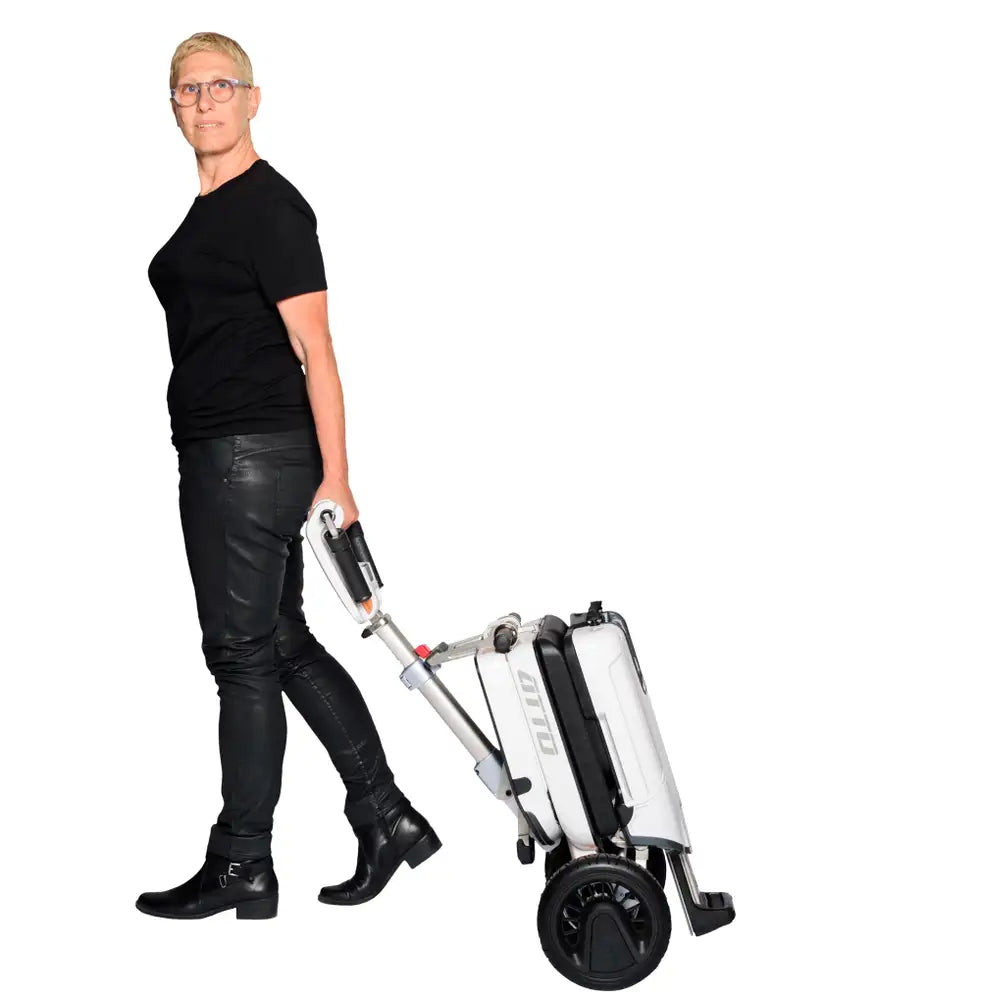

• ATTO can be easily folded into a trolley suitcase which you can carry with you on the train or plane.

Weights (not including battery)

• Front half: 26.4 lb (12 Kg)
• Rear half: 35.7 lb (16.2 Kg)
• Assembled: 62.2 lb (28.2 Kg)
• The battery weighs 4.1 lb (1.85 Kg)

Motor

• Fully customized
• Brushless
• Permanent magnet
• DC Motor
• Robust braking mechanism

Limits

• 6 degrees maximum incline
• 53 inches (135 cm) turning radius
• 4 mph (6.4 km/h) maximum speed
• 265 lb (120 Kg) maximum user weight
• 5 feet (150 cm) minimum user height

Materials

• Aviation-grade aluminum
• High-tech plastics
• Nylon-enforced ABS
• PU filled non-pneumatic tires

Battery

• Safety certification: IEC 62133
• Sea and Air Transport certification: UN 38.3
• 250 W/h capacity
• 48-volt “non-spillable” lithium-Ion battery
• A 4- to 5-hour charge delivers up to 12 miles (19.3 km) of continuous driving on average.

Charger

• UL- and CE-approved
• Self-shutdown functionality
• 110-240V AC

Safety Testing

• Safety: EN12184 Labeling: ISO 7176-15 EMC: ISO 7176-21
• Risk Management: ISO 14971
• Regulatory Compliance: EEC: Annex V of 93/42/EEC
