Ramps

Telescoping Ramps

Telescoping Ramps

Ramp Size :
$945.00
$945.00 $1,345.00

30% off

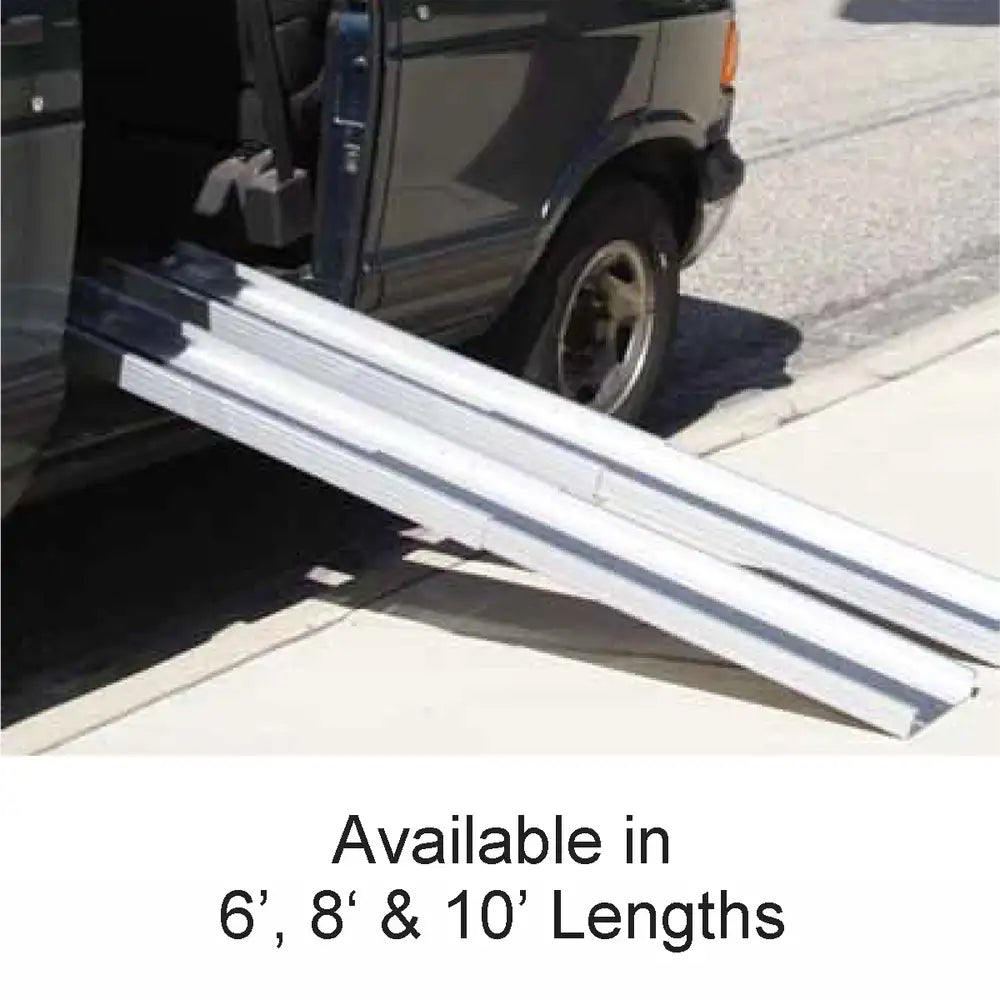

Available in 6', 8', and 10' lengths, these lightweight aluminum telescoping ramps are designed for portability and safety. With a weight capacity of 600 lbs, they are not recommended for use with three-wheeled scooters or devices with wide wheels.
View full details

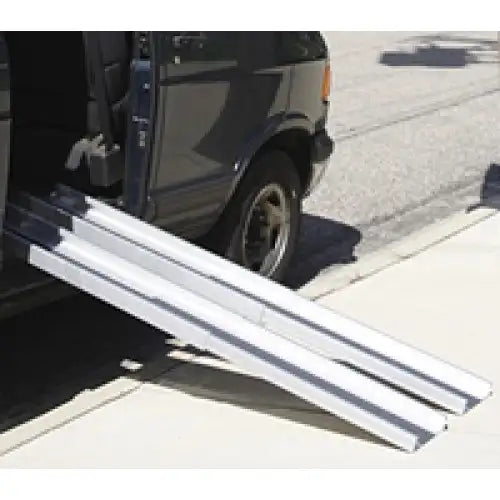

The Telescopic Channel Ramps come in 6' lengths and are made from lightweight aluminum. Despite weighing just 30 lbs, they can support up to 600 lbs. These ramps are easy to set up, with a permanent textured, non-skid surface to ensure user safety. They're ideal for both wheelchairs and four-wheeled scooters but are not compatible with three-wheeled scooters.
Ramp Length Calculator:
To ensure the correct ramp length, consider the following:
Rise (in inches): Vertical difference between the lower and upper levels.
Minimum Required Permanent Ramp Length (1:12 slope): Suitable for wheelchairs, scooters, and walkers.
Minimum Occupied Portable Ramp Length (2:12 slope): When the user is sitting in the mobility device.
Minimum Unoccupied Portable Ramp Length (3:12 slope): When the mobility device is empty.
Safety Guidelines:
Wheelchair Ramp Slope: Permanent ramps should have at least 1' of length for every 1" of rise. For portable ramps, a 1' length for every 2" of rise is recommended.
Type of Equipment: Always check manufacturer guidelines on the maximum incline that can be traversed.
User Presence: The above recommendations apply when a user is in the mobility device.
Setup and Usage:
Slip Prevention: Secure the ramp to avoid slippage, especially in icy or slippery conditions.
Anchoring: Use provided pins to secure the ramp in place.
Precautions:
Use the ramp with a qualified helper.
Always use a lap belt for added safety.
Check the mobility device's owner's manual for acceptable inclines.
Maintenance and Safety:
Regular inspections are essential. If any wear, looseness, or damage is found, stop using the ramp and contact your dealer.
Use caution in wet or icy conditions.
Keep the ramp clean and only use it for its intended purpose.
Weight Limit: 600 lbs
Visit here for more Lift Chair Accessories – https://www.factorydirectmedical.com/product-category/lift-chair-accessories/
Here is our other resources – https://www.facebook.com/FactoryDIrectMedical/


Warranty Information

Factory Direct Medical Wheelchair Ramps carry a five year warranty against manufacturing defects faulty materials and workmanship.

In the event of a defect covered by this warranty, we will, at our option, repair or replace the item. Please contact your supplier/dealer for assistance should a defect become apparent.

The warranty does not extend to consequential costs resulting from the fault or defect in the product, in particular freight and travel costs, loss of earnings, expenses or other expenses which may occur.

The warranty does not cover normal wear and tear resulting from normal use or damage caused by accident, misuse, negligence or improper installation or assembly.

The vendor/manufacturer will not accept responsibility for any damages or injury caused by misuse, negligence or non-observance of the instructions supplied.

If you have a question regarding your product, its use or this warranty please contact an authorized dealer.

  • The load capacity for the telescoping channel ramps is 600 lbs.
  • The non-skid finish insures long life and safe use
  • Easy to set up for use
  • Lightweight Aluminum Construction
  • Channel width of 7 ½"
  • Contracts to for easy transportation and storage
  • Channel ramps are suitable for most wheelchairs and 4 wheeled scooters
Model Length
(closed/open)		 Maximum
Rise		 Channel Width Weight Capacity
(pair)
TCR6 42"/72" 7" to 12"" 7½" 30 lbs 600 lbs
TCR8 54"/96" 9" to 16" 7½" 39 lbs 600 lbs
TCR10 70"/120" 12" to 20" 7½" 51 lbs 600 lbs
