Electrotherapy

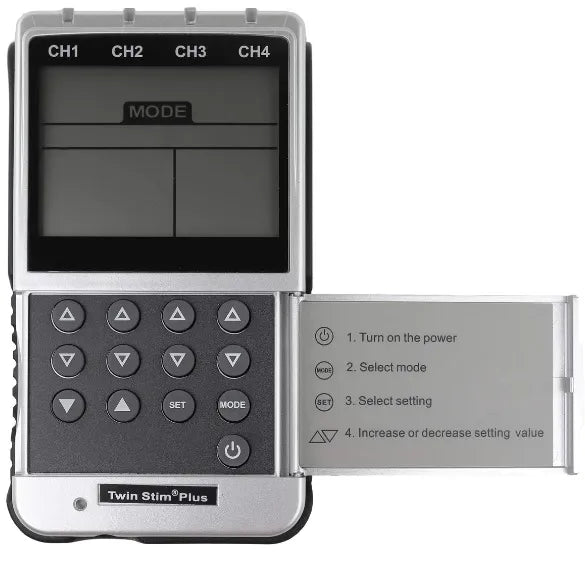

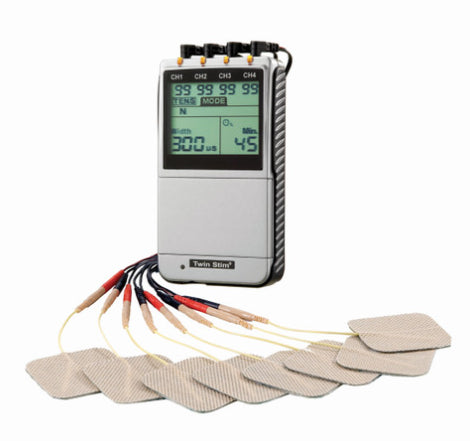

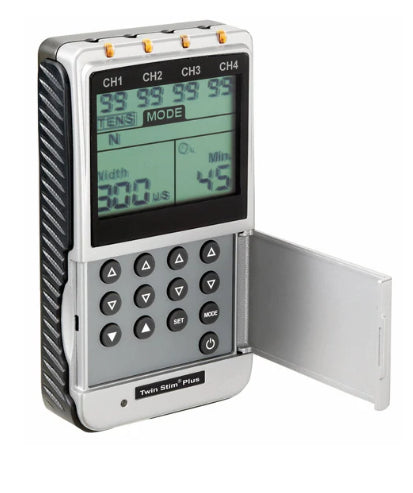

Twin Stim Plus 4-Channel TENS & EMS Combo

Twin Stim Plus 4-Channel TENS & EMS Combo

$230.00
$230.00 $330.00

30% off

Digital Twin Stim Plus 2nd Edition 4-Channel TENS/EMS Combo is a battery operated as well as AC connect pulse generator that sends electrical impulses electrodes to the body and reach the nerves and underlying muscle group. This unit is a combination stimulator of TENS and EMS which can be used for muscle stimulation and pain relief. The device is provided with four controllable output channels, each independent of each other. An electrode pair can be connected to each output channel. The intensity level is controlled by press buttons.
The unit is ideal for clinical and daily homecare
The features of 4 Channel, 5 TENS Stimulation Modes and 3 EMS Stimulation Modes. With adjustable pulse width, pulse rate, intensity, ramp time and treatment time, users could easily operate their treatment and customize the most comfortable setting for themselves. With large Backlit Liquid Crystal Display, it clearly shows the selected mode and the treatment remaining time. It’s perfect for the users who suffer from chronic pain and also need to relax their muscles.

For the purpose of pain relief, muscle strengthening and relaxing, Twin Stim is definitely an ideal for the users to start their first electrotherapy treatment.

View full details
  • Channel: Four, isolated between channels
  • Five TENS Modes: Burst / Normal / Modulation / SD1 / SD2
    Three EMS Modes: Constant / Synchronous, / Alternate /
  • Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load each channel.
  • Wave Form: Asymmetrical Bi-Phasic Square Pulse
  • Voltage: 0 to 50V (Load: 500 ohm)
  • Power source: Four 1.5V AA batteries  or 110v power adaptor
  • Size: 13.8cm(L) x 7.8cm(W) x 2.8cm(H)
  • Weight: 425 grams with battery
  • Pulse Rate: Adjustable, from 2 to 150 Hz, 1 Hz/step
  • Pulse Width: Adjustable, from 50 to 300 microseconds, 10 µs/step
  • Pulse Ramp Time:  Adjustable, 1~8 seconds, 1 Sec./ step, The “On” time will increase and decrease in the setting value.
  • Contraction Time: 2-90 seconds, 1 sec./step
    Relaxation Time: 0-90 seconds, 1 sec./step
  • Modes: Five TENS Modes: B(Burst), N(Normal), M(Modulation), SD1, SD2 (Strength Duration), Three EMS Modes: C(Constant), S(Synchronous), A(Alternate)
  • Timer: Two Adjustable timers, from 1 to 60 minutes or Continuous. Adjustable in 1 minute each step from 1 to 15 minutes, and 5 minutes each step from 15 to 60 minutes. Treatment time countdown automatically.
  • Patient Compliance Meter: This unit can store 60 sets of operation records. Total recorded time is 999 hours.
  • Low Battery Indicator: A low battery indicator will show up when the battery is low.
  • Operating Condition:  Temperature:0°~40°, Relative Humidity: 30%~75%, Atmosphere Pressure : 700Hpa~1060Hpa

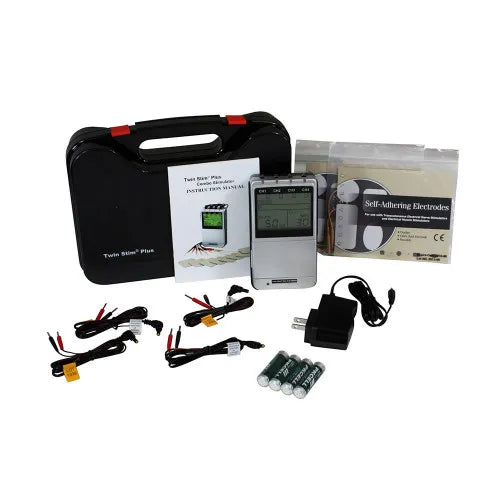

  • System Includes: device, AC adaptor, four lead wires, eight self-adhesive, reusable electrodes, four AA batteries, hard plastic carrying case and instruction manual
  • Remark: There may be up to a +/-5% tolerance of all parameters and +/-20% tolerance of amplitude & voltage.
  • Warranty: One year
Device Features

Device Features:

  • Precise Intensity Control: There are 100 steps of intensity level controlled by press buttons from 1 to 100mA.
  • Press Button Control: The power, intensity level, and parameter are controlled by press buttons, which is easy for the users to adjust the settings. All of the buttons are protected by a swing door to avoid accidental touch.
  • Large Liquid Crystal Display: A large LCD in 6.1 x 4.4 cm showing the intensity level, settings, and treatment timer. The selected modes and parameters are readable.
  • Two Treatment Timers: There are two individual timers controlling the output of CH1, CH2 & CH3, CH4. This function is ideal when two patients accept treatment with the same machine.
  • Treatment Time Countdown: The output will shut off automatically when the time is up.
  • Compliance Meter: The unit can store 60 sets of record of operation.
  • Health Canada Licence Device:
  • What is TENS?
    TENS: “Transcutaneous Electrical Nerve Stimulation” - a safe, non-invasive, drug-free method of pain relief used by Physical Therapists and professional Doctors for over decades. By delivering stable pulses to the skin to stimulate nerve fibers, Tens unit could effectively block the pain signal to people’s brain. At the same time, increases natural endorphins, which is a natural pain reliever. In many cases, the reduction or elimination of pain lasts longer than the period of stimulation.
  • What is EMS?
    EMS: “Electrical Muscle Stimulation” is an internationally accepted and proven way of treating muscular injuries. It works by sending electronic pulses to the muscle needing treatment; this causes the muscle to exercise passively. When the muscle receives this signal it contracts as if the brain has sent the signal itself. As the signal strength increases, the muscle flexes as in physical exercise. Then when the pulse ceases, the muscle relaxes and the cycle starts over again, (Stimulation, Contraction, and Relaxation.)
